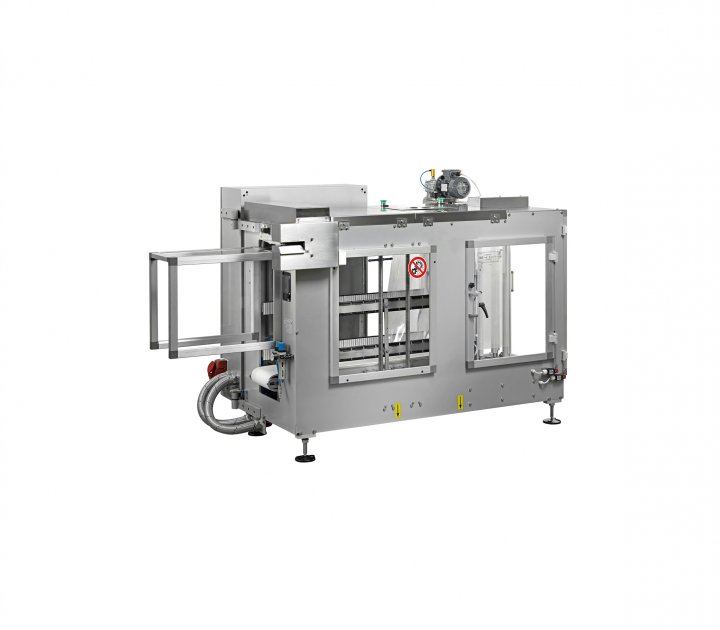

Yukon 300

Vertical packaging machine YUKON 300 – centre folded film
controlled by Plc Siemens
General technical characteristics:
– Main Structure made of painted steel;
– Electrical cabinet is fixed to the machine;
– Pneumatic reel-holder shaft;
– End of film automatic detection;
– Motorized film-pulling unit;
– Film-unwind process is carried out by toothed belts;
– N.1 Loading station;
– Pneumatic unit for horizontal sealing and cutting, with sealing wire and knife;
– Pneumatic unit for vertical sealing and cutting processes, by a hot bar;
– Bag length measuring system: Encoder of photoeye;
– Exit belt,incorporated;
– Holdin group and transporting the product under the loading zone;
– Device for the extraction and recovery of the excess;
– Max. bag height: 300 mm;
– Max. empty bag width: 300 mm;
– Max film reel height: 370mm
– PLC Siemens control system;
– Power Supply: 400Vac-3Ph+N-50Hz
– Installed power: 5,5 Kw
– Compressed air: 6 Atm
– CE Certification.
