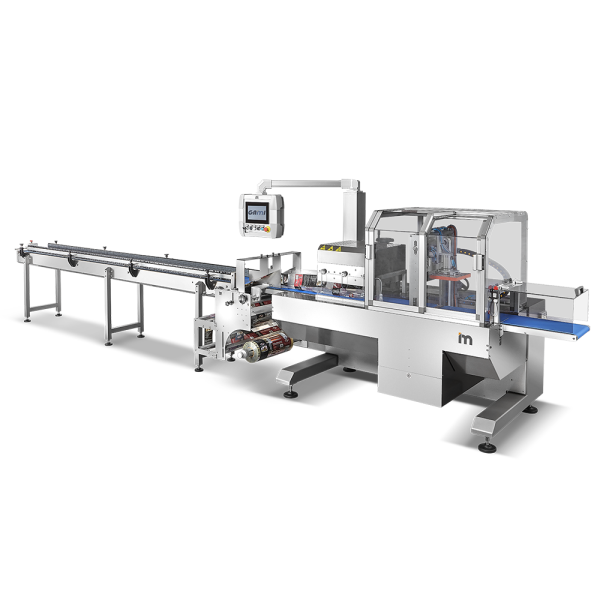

TORNADO PBB

Horizontal flow wrap machine equipped with moving cross sealing unit suitable for heat-sealable films, indicated for hermetic seal.
3 models: Tornado 700 PBB, Tornado 900 PBB & Tornado 1000 PBB.

General features:

– Ral 7035 painted main frame;
– In feed pusher conveyor, controlled by servomotor;
– FDA plastic pushers;
– Cantilever reel shaft holder;
– Universal forming tunnel adjustable by hand in width;
– Sealing System: with impulse sealing wire (PE) or permanent Hot Bar (PP);
– Possibility to work also with paper;
– Cross sealing jaws controlled by servomotor and manually adjustable in height;
– The sealing jaws closing is controlled by servo motor;
– Fin seal unit controlled by servomotor composed by two pre-heated wheels to pull the film, two sealing wheels and two folding wheels. The two heated couple of wheels they open pneumatically so we avoid any burning during a machine stop and guarantee a safe and fast way to introduce the film when starting a new production or changing reel;
– Removable guards with safety switches;
– Exit belt;
– Servomotor control for 5 driving motors:
1) cross sealing unit;
2) fin seal head and out feed belt;
3) in feed conveyor with pushers;
4) product driving belt underneath the longitudinal sealing position;
5) jaws closing;
– Kollmorgen controlled system;
– Touch screen ;
– Electrical cabinet inside the main structure;
– End of film detection;
– Festo Pneumatic Components;
– Machine manufactured according to CE regulations;
– Compressed air 6 Bar;
