MyWay

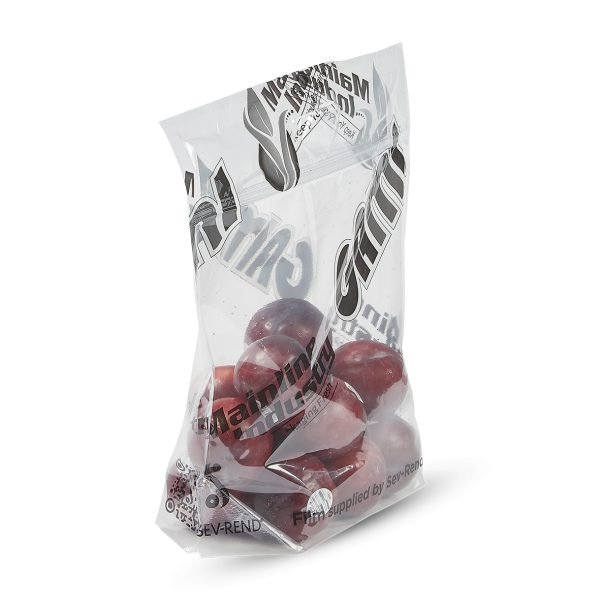

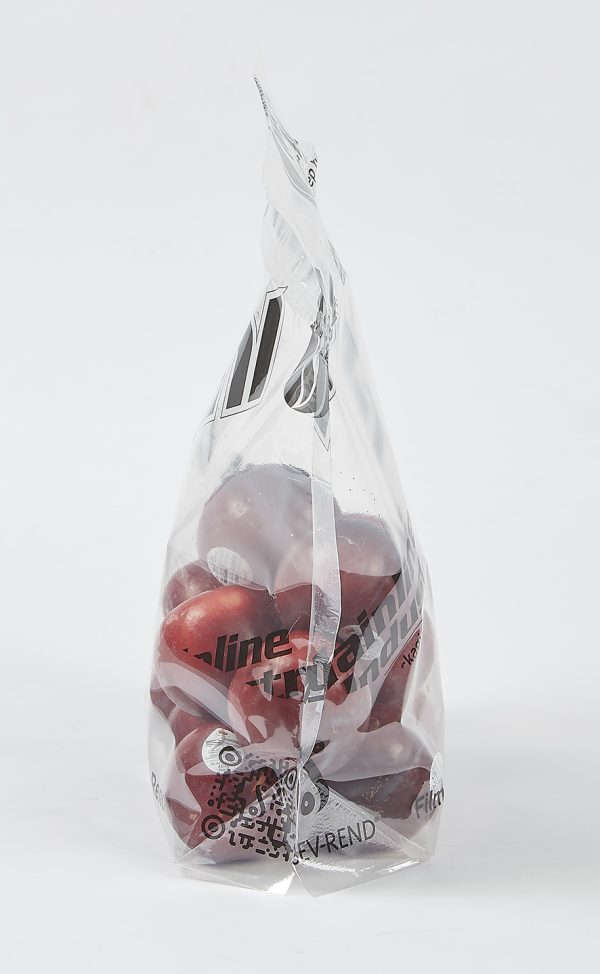

MYWAY – STAND UP POUCH – HEATSEALABLE MATERIAL
Vertical form, fill and seal machine, model MYWAY from flat film Reel, controlled by PLC .

General technical characteristics:
– Main Structure made of Painted Steel;
– Electrical cabinet is integrated against the frame;
– End of film automatic detection system with automatic machine pauses when the film-reel is over;
– Motorized film-pulling unit by 2 Servo Motor;
– Motorized Film Unwinding system by AC Motor;
– N.1 Loading station;
– Machine Flow Chart:
*Film Folding Device
*Die Cut for bottom seal
*Gusseting Device
* Bottom Reinforsement
*Double Vertical Sealing
*Vertical Cutting
*Loading Station
*Horizontal Sealing
* Exit Belt
*Film Scrap Collector
– Zipper, print registration and bottom reinforcement are included;
– Bag Sizes:
Min: 180 mm wide x 180 mm long
Max: 340 mm wide x 400 mm long
– Max film Reel 900 mm
– Mechanical Speed: up to 40 a minute (to be determined based on added option, loading time and product)
– CNC Kollmorgen control system;
– CE Certification.
– Power Supply: 380V-50HZ-3 phase +N -Ground.
