Kansas 660

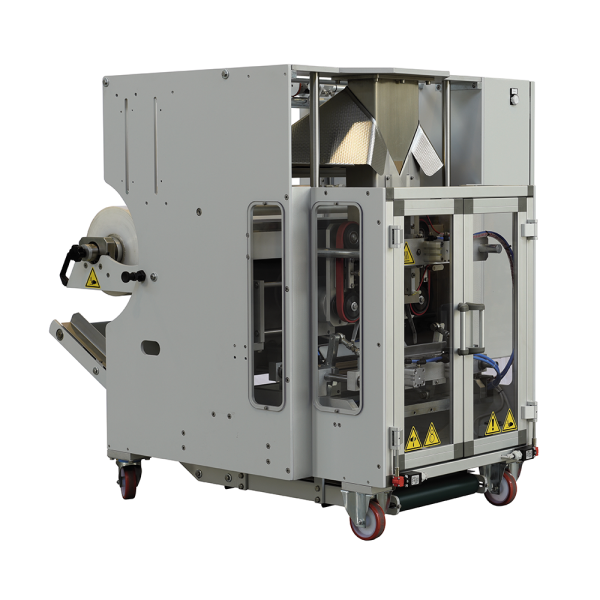

Vertical Form Fill Seal machine mod. KANSAS 660, poliethylene version
General technical characteristics:
– Main Structure made of painted steel RAL 7035;
– Electrical cabinet incorporated to the machine;
– Motorized film-reel unwinding system;
– Motorized film-pulling unit;
– Self-centering reel holding moving unit;
– Electronic Card for Detection of Sealing Wires Breakage
– Sealing system with 3 independent motions;
– Bag length measuring system: Encoder
– End of film automatic detection system
with automatic machine stop when the film-reel is over;
– Sealing bar safety device;
– Sealing System with flat wire (PE);
– Interchangeable forming tube;
– Max. bag length: 175 mm; (300 mm by double sealing cycle);
– Max. empty bag width: 300 mm;
– Max width film reel: 650mm.
– Exit Belt Incorporated in the Machine
– PLC control system.
– Voltage : 400 Vac 3 Phase + N + 50 Hz
– Installed power : 3,5 Kw
– Compressed air consumption : 6 Atm
– CE standards.
